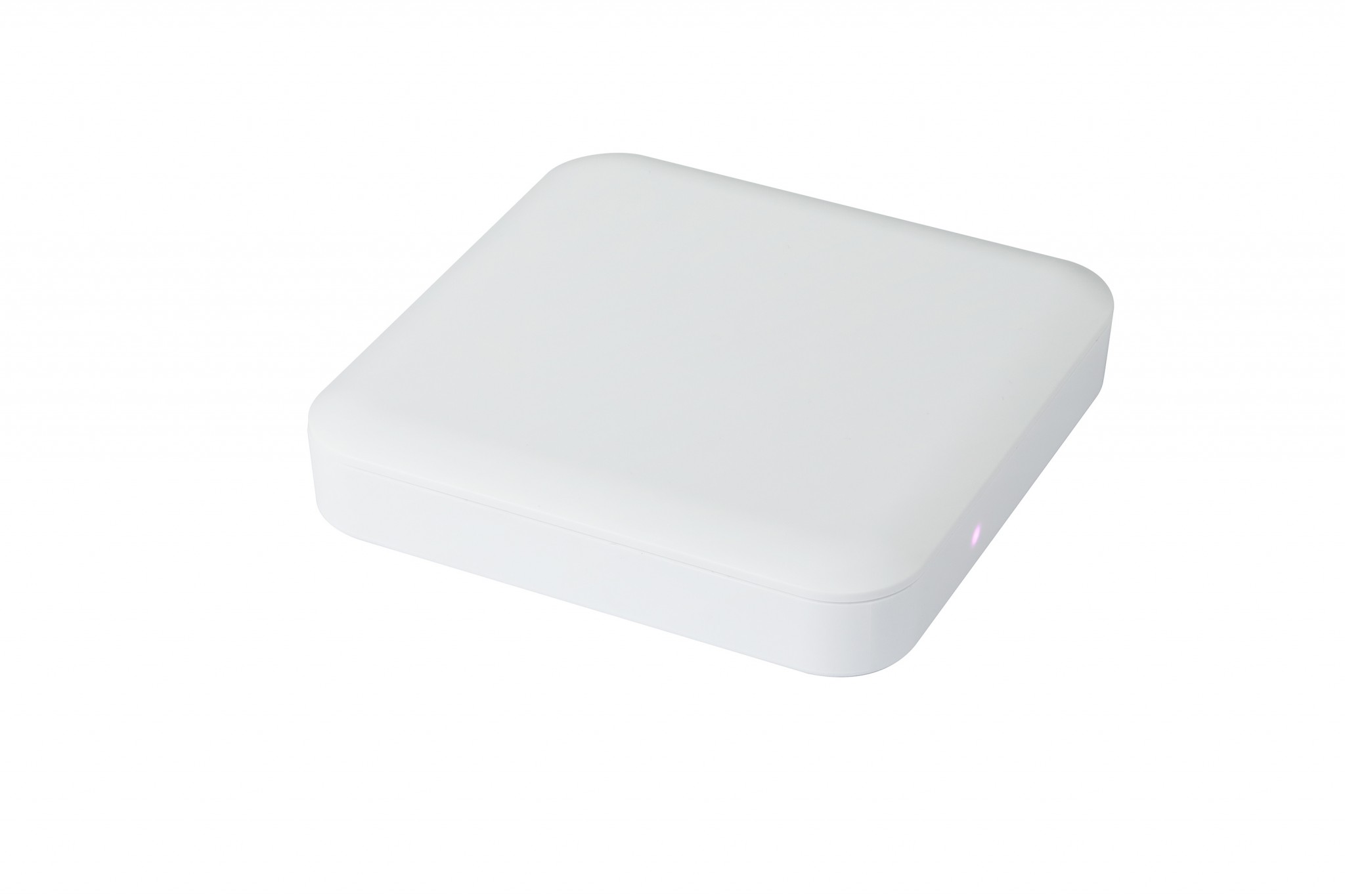

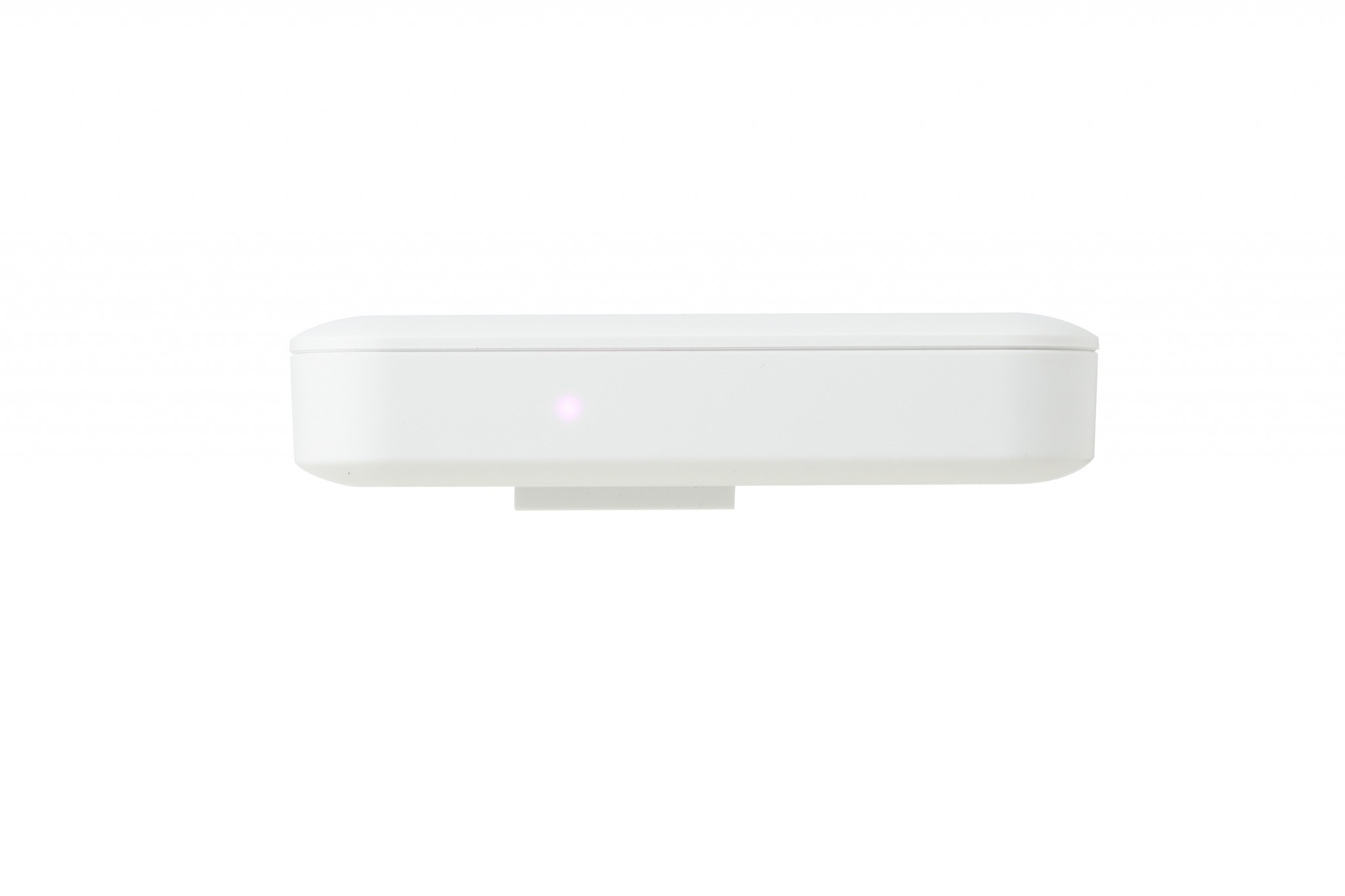

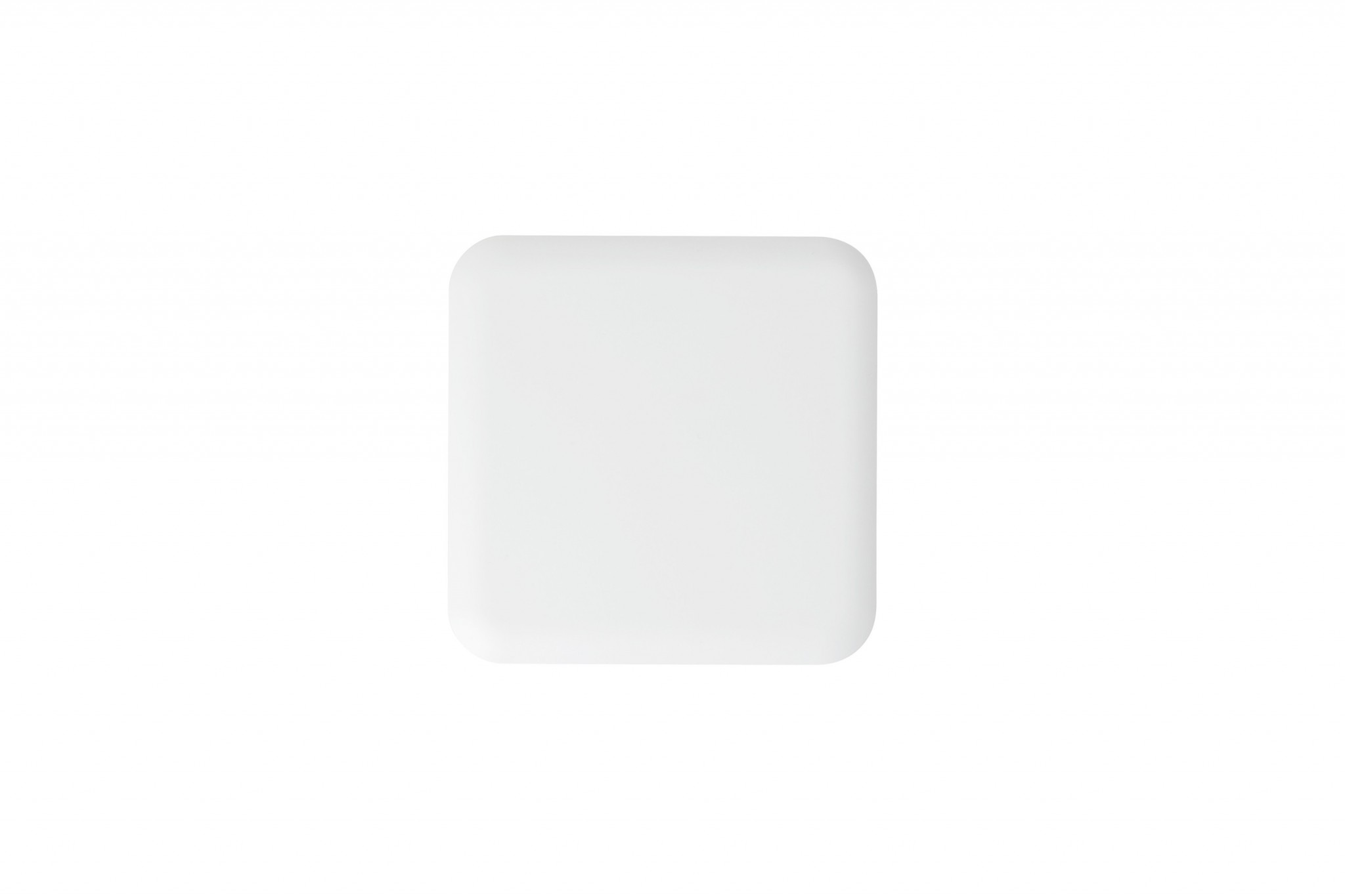

Plasma Cloud PA1200 Access Point
Plasma Cloud’s universal solution for almost any setup. With dual band & dual stream 802.11ac WiFi in a compact weather resistant housing the PA1200 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension.
SKU: PA1200
MPN: PA1200
Lagerstatus:
8 st
Leveransstatus: I lager
Beskrivning
| PA1200Plasma Cloud’s universal solution for almost any setup. With dual band & dual stream 802.11ac WiFi in a compact weather resistant housing the PA1200 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. | |
POWER OVER ETHERNET (POE)Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply. |
| |

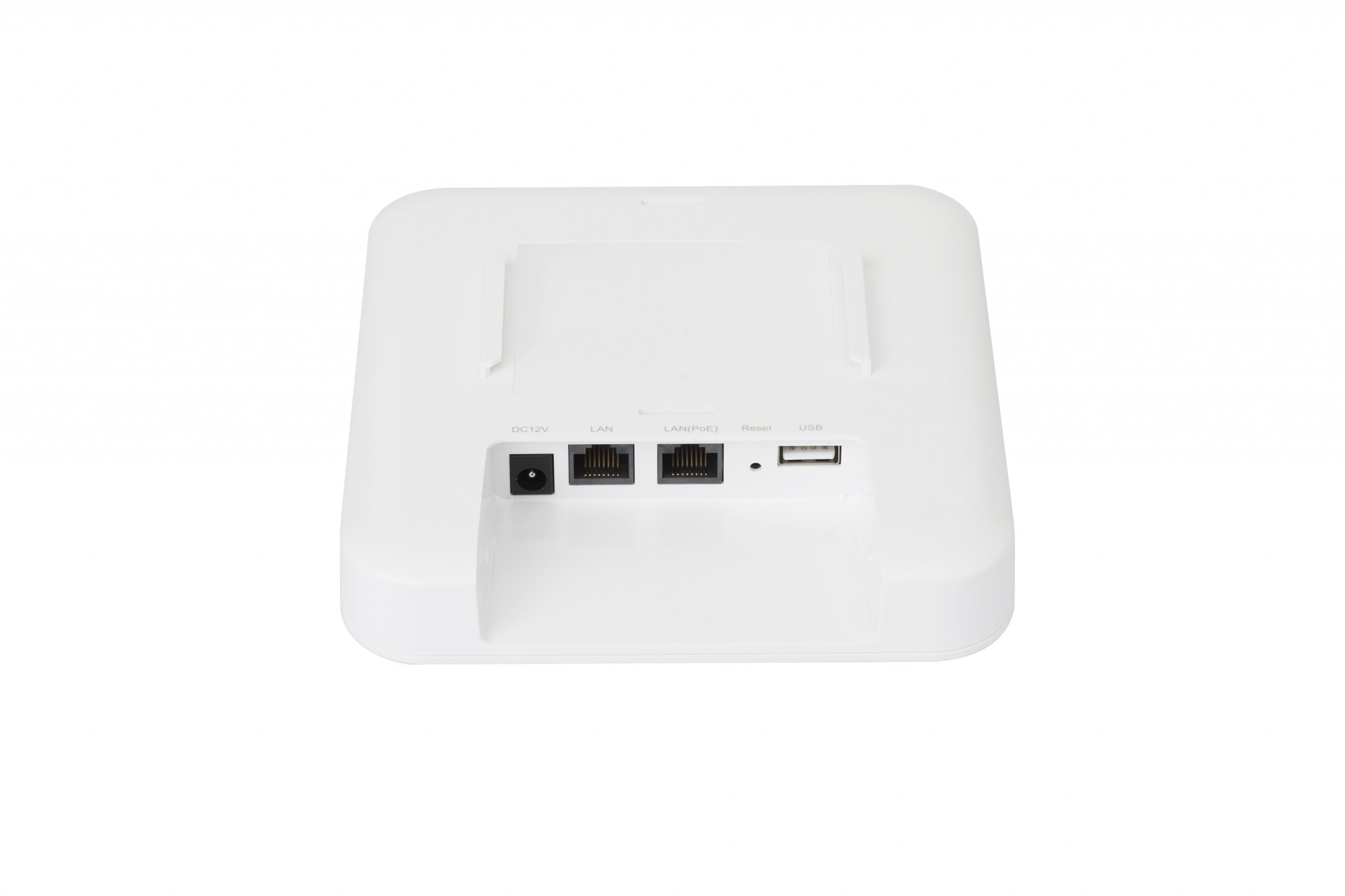

| ETHERNET PORTSThe 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access. | |

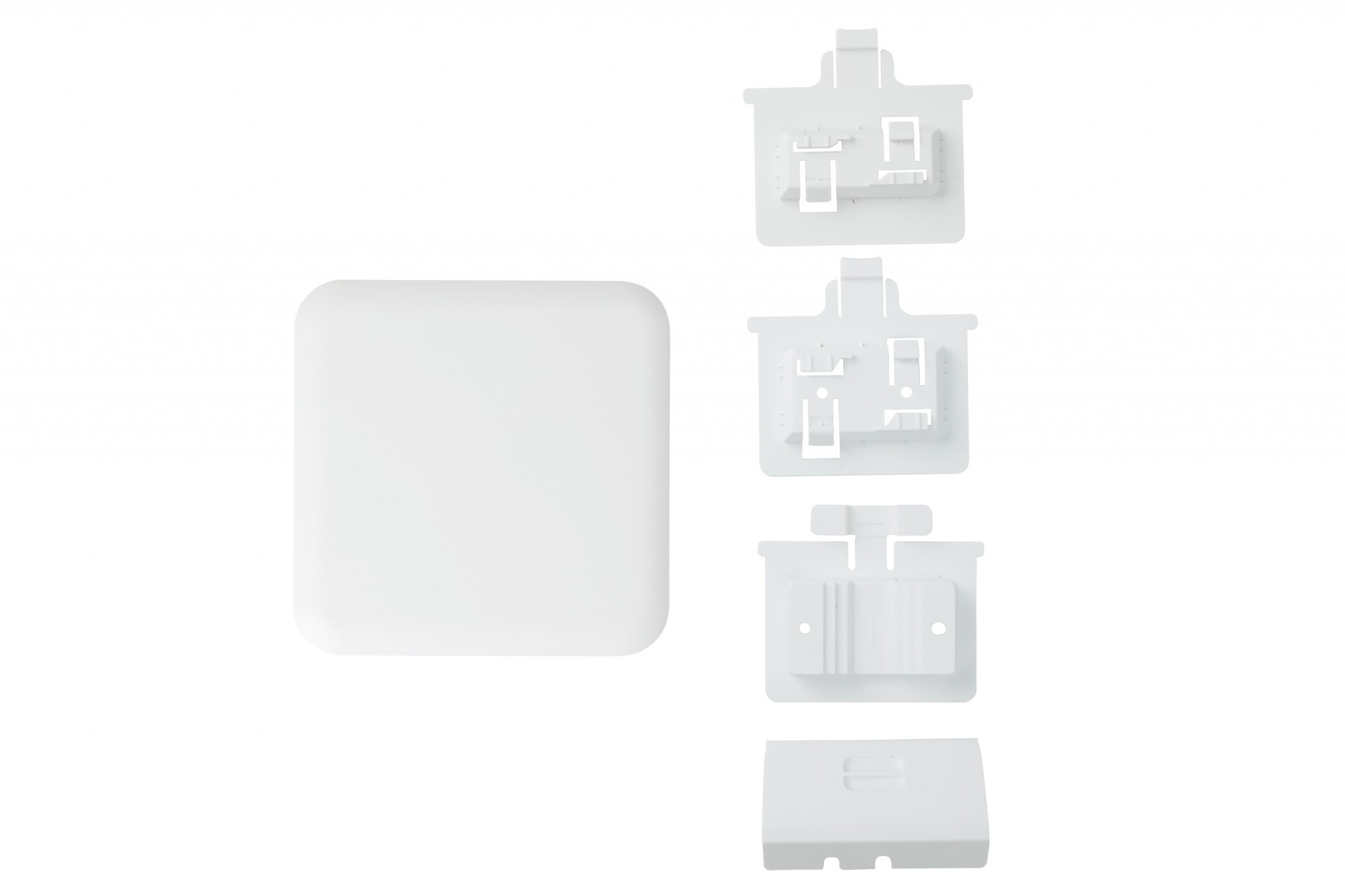

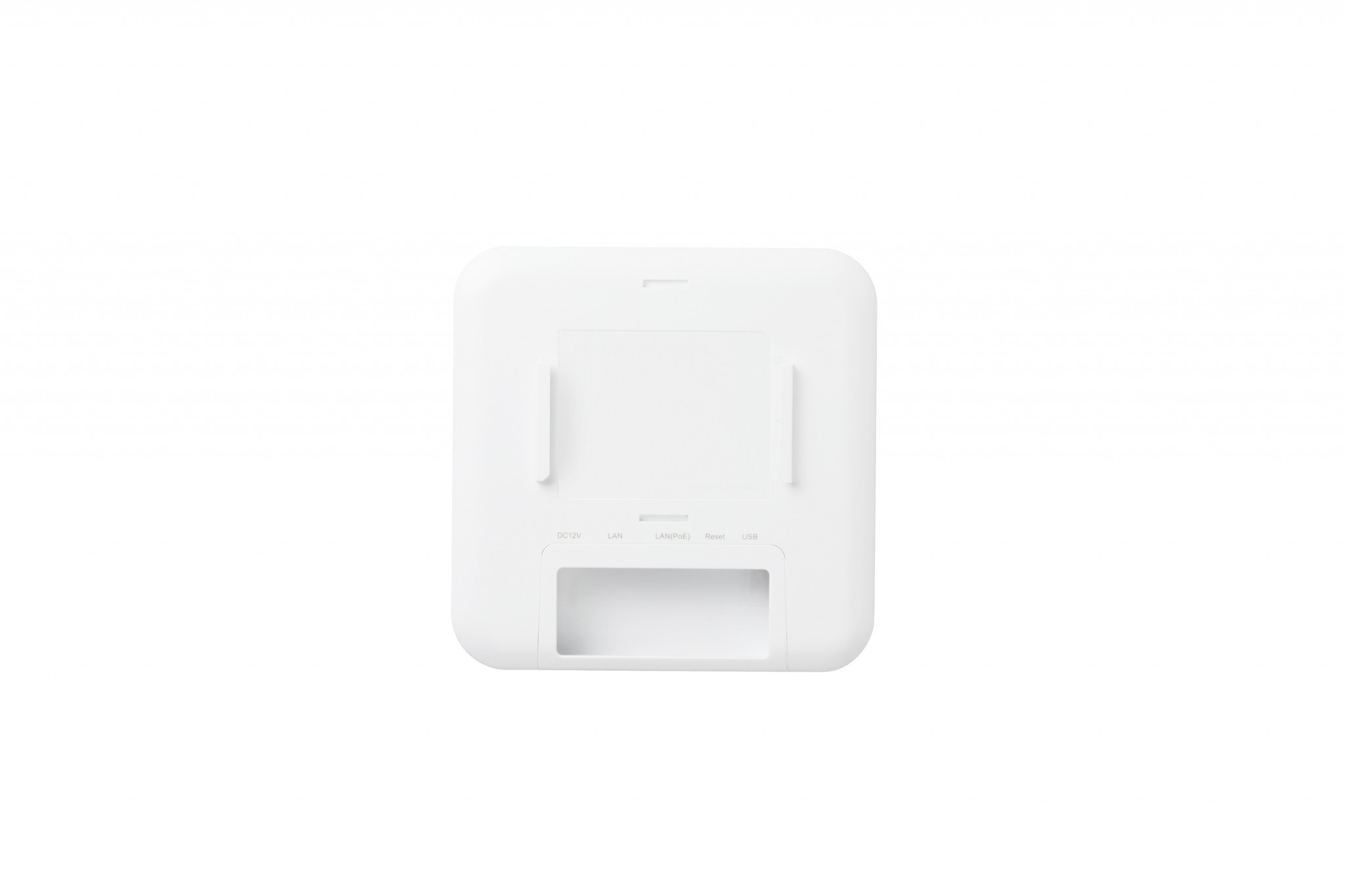

Regardless where to place the access points – on a wall or ceiling grid – the installer kit included with every AccessPoint facilitates the installation. Easily pluggable mounting options got you covered for every scenario. |
| |
Teknisk specifikation
| RADIO CHAINS/STREAMS | 2.4 GHz=2x2, 5 GHz=2x2 |
| ANTENNAS | 2.4 GHz = 3.0 dBi 5 GHz = 5.0 dBi |
| DATA RATES | 300 Mbps + 867 Mbps |
| 2.4 GHZ | 2 stream, 802.11 b/g/n (max rate= 300 Mbps) |
| 5 GHZ | 2 stream, 802.11 a/b/g/n/ac (max rate= 867 Mbps) Wave 2, MU-MIMO |
| CPU | Qualcomm Dakota IPQ4018 |
| MEMORY | 256 MB DRAM DDR3 |
| PHYSICAL INTERFACE | 2x 1000Mbps Ethernet Ports 1x USB |
| POE | 802.3af / 802.3at |
| DC JACK | 12-24V / 1A |
| INDOOR/OUTDOOR RATING | CE Marked for indoor/outdoor use, IP55 |
| DIMENSION (W X D X H) | 142 x 142 x 35 mm |
| WEIGHT | 500g |
| OPERATING TEMPERATURE | 0°C ~ 40°C (32°F ~ 104°F) |
| WARRANTY | 1 year |
