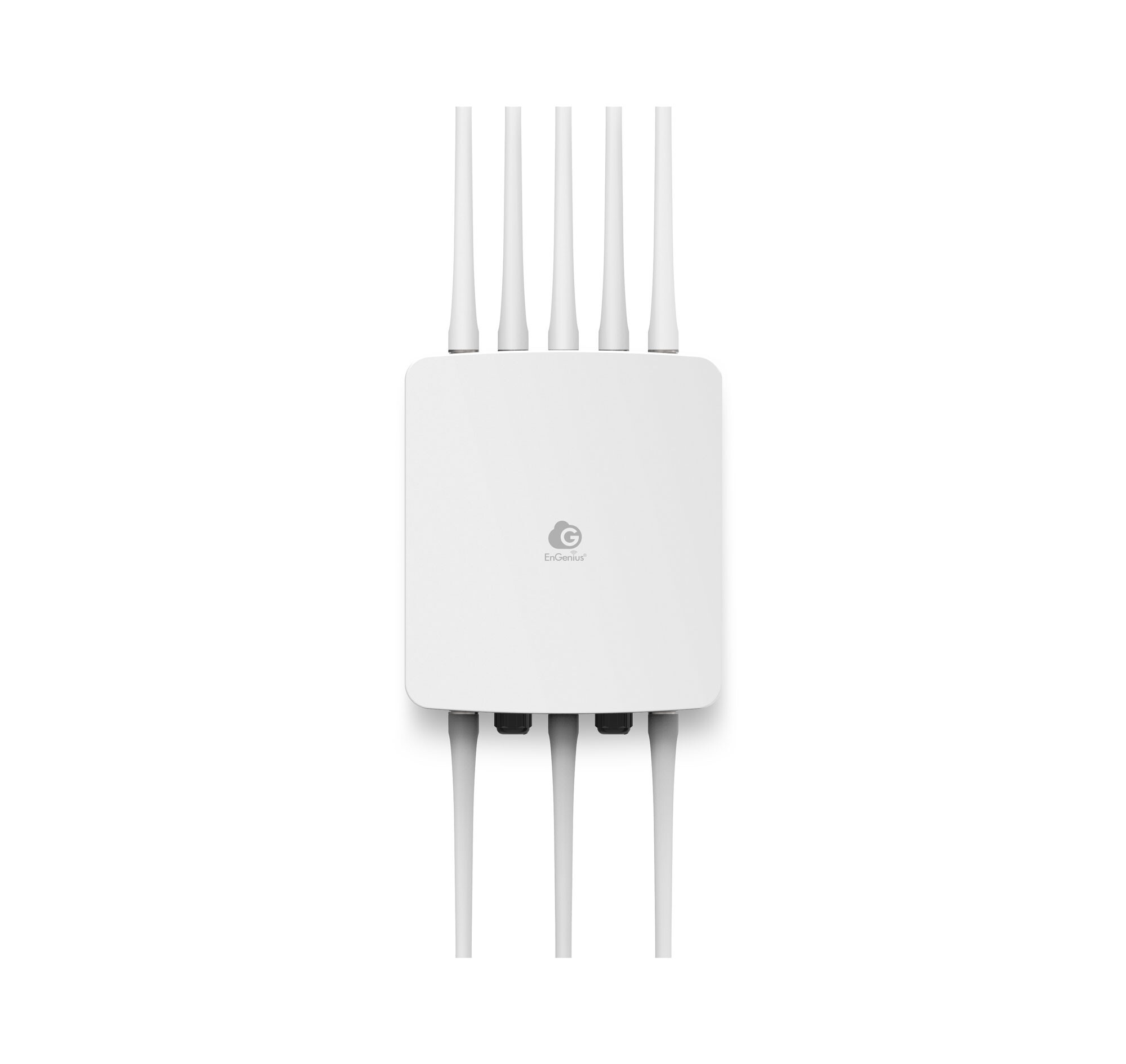

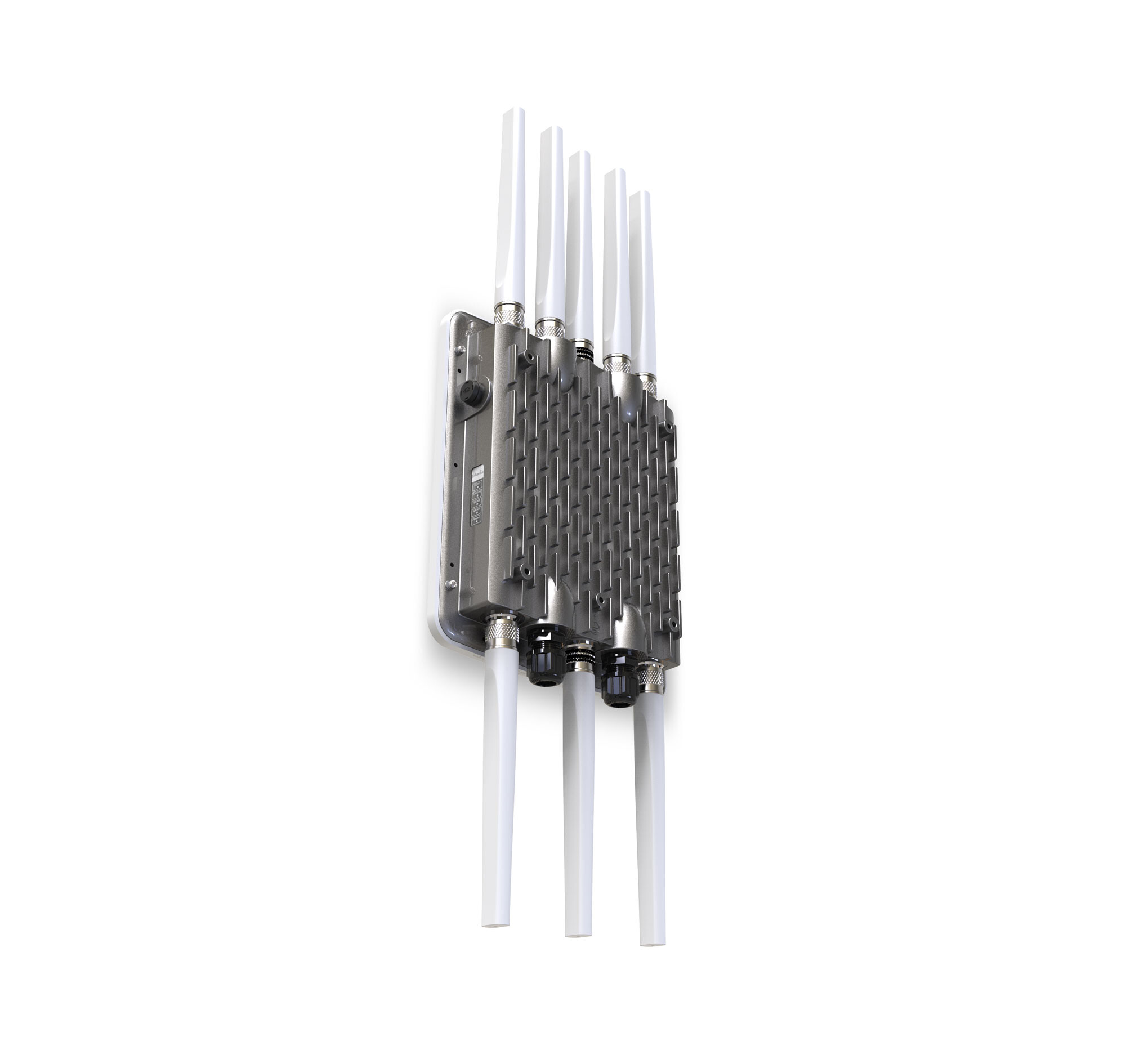

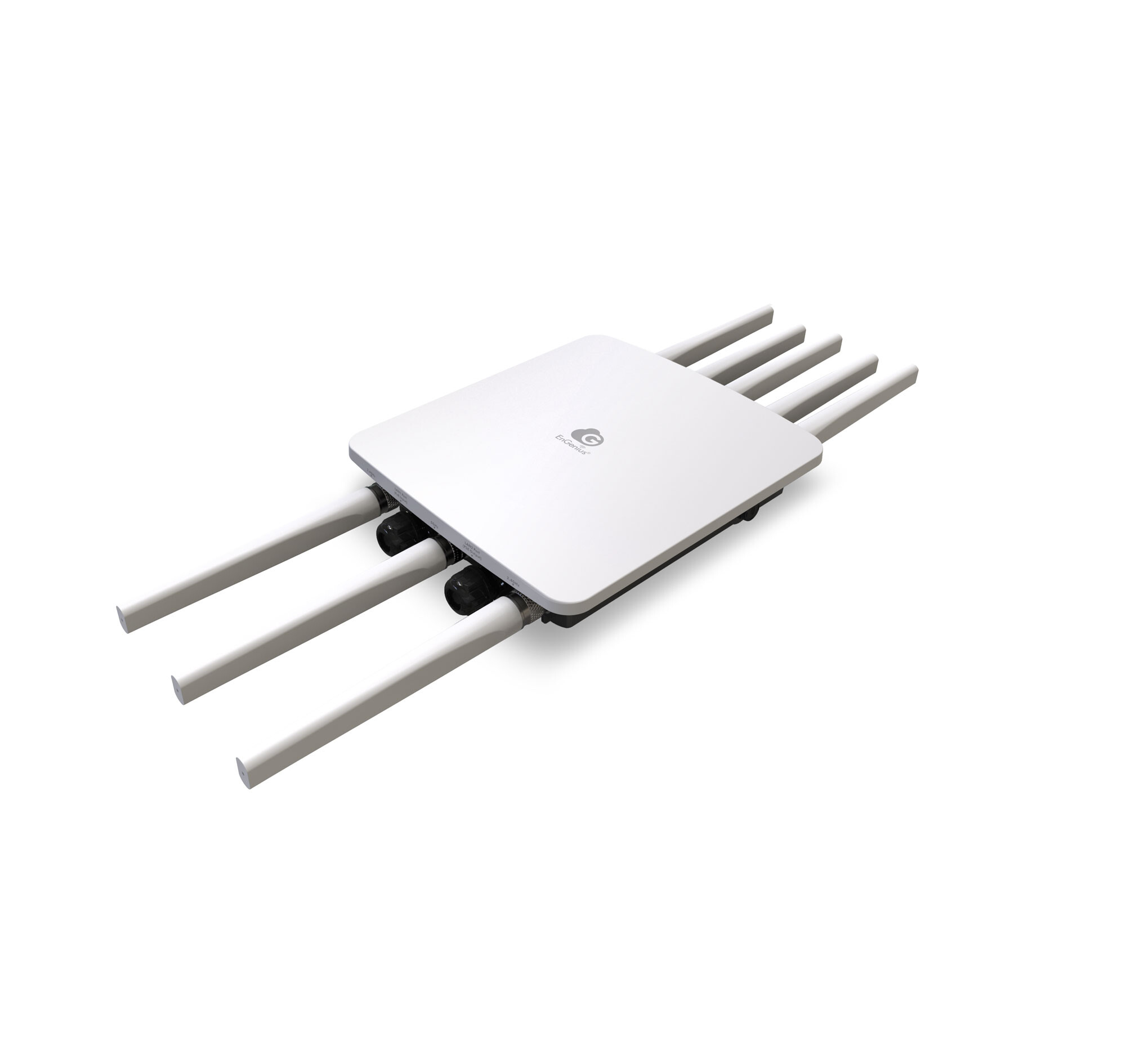

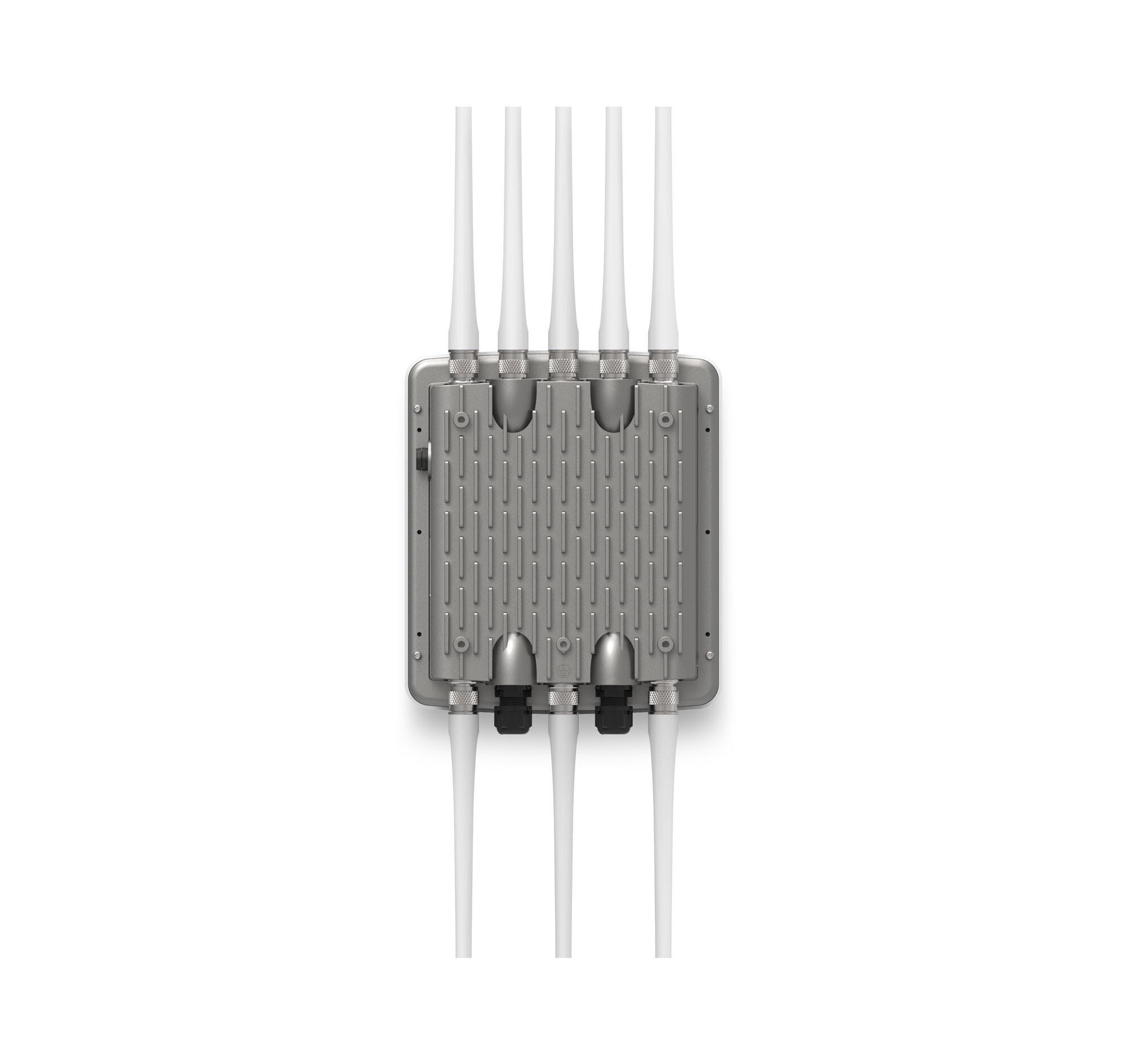

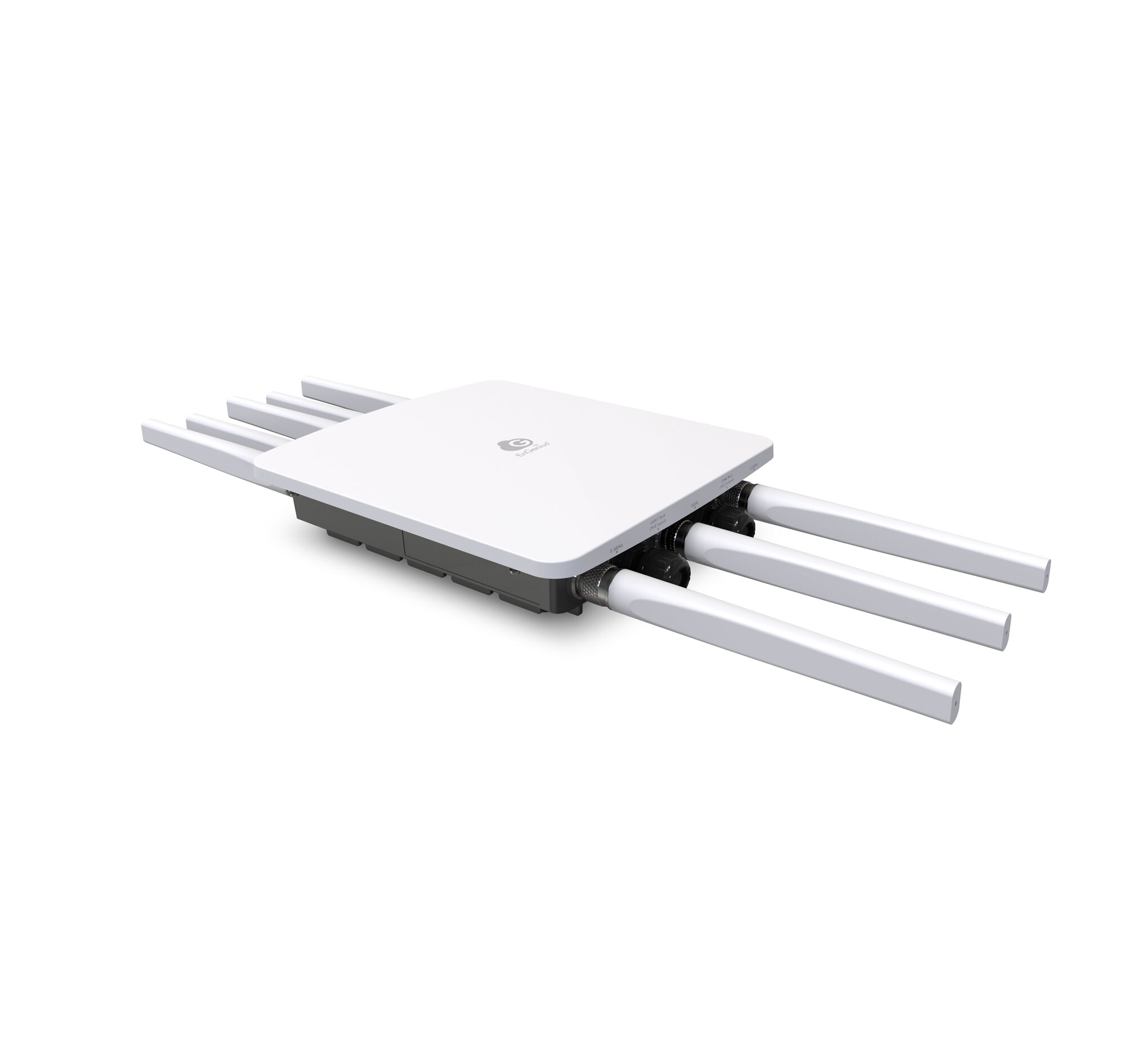

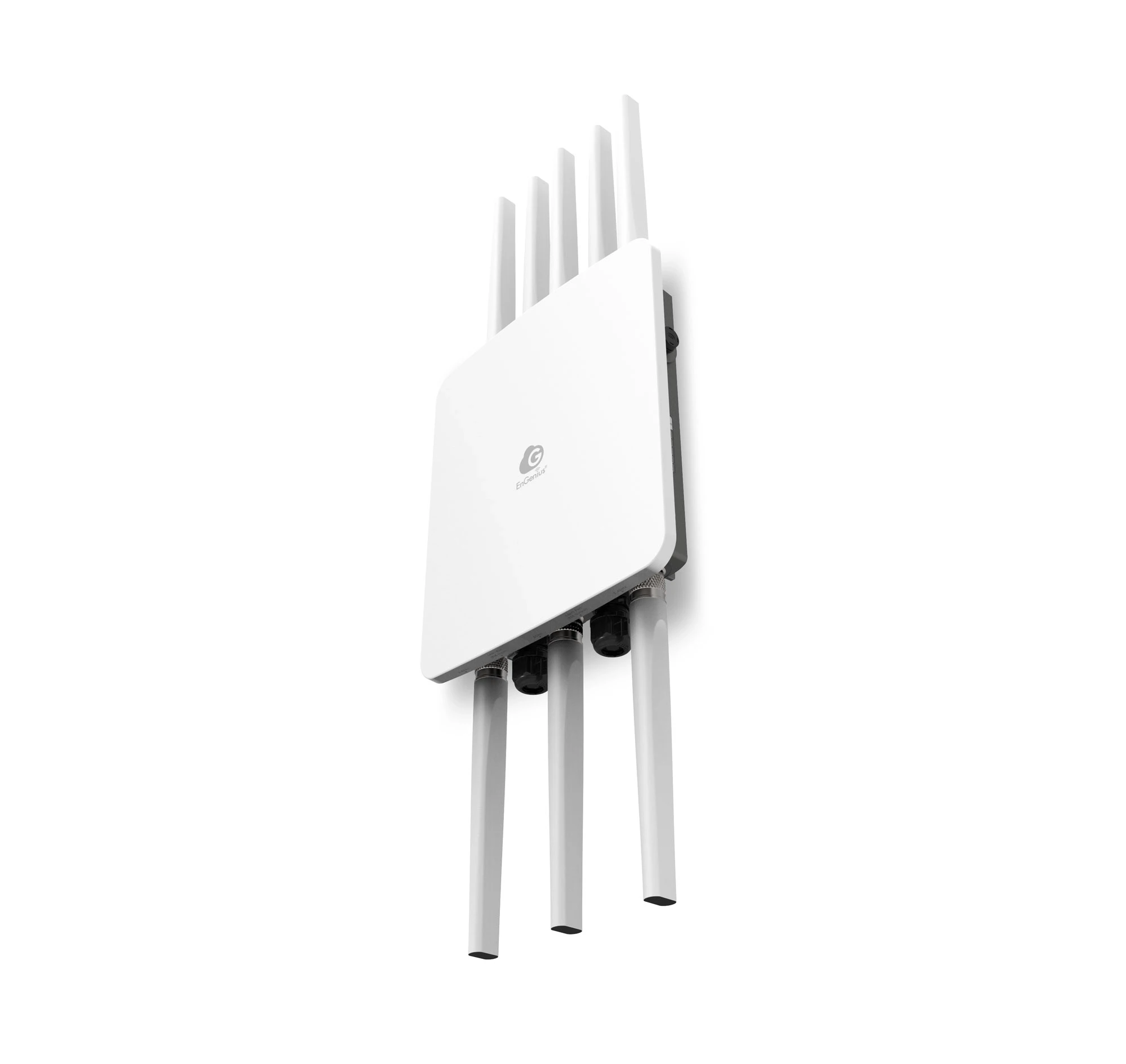

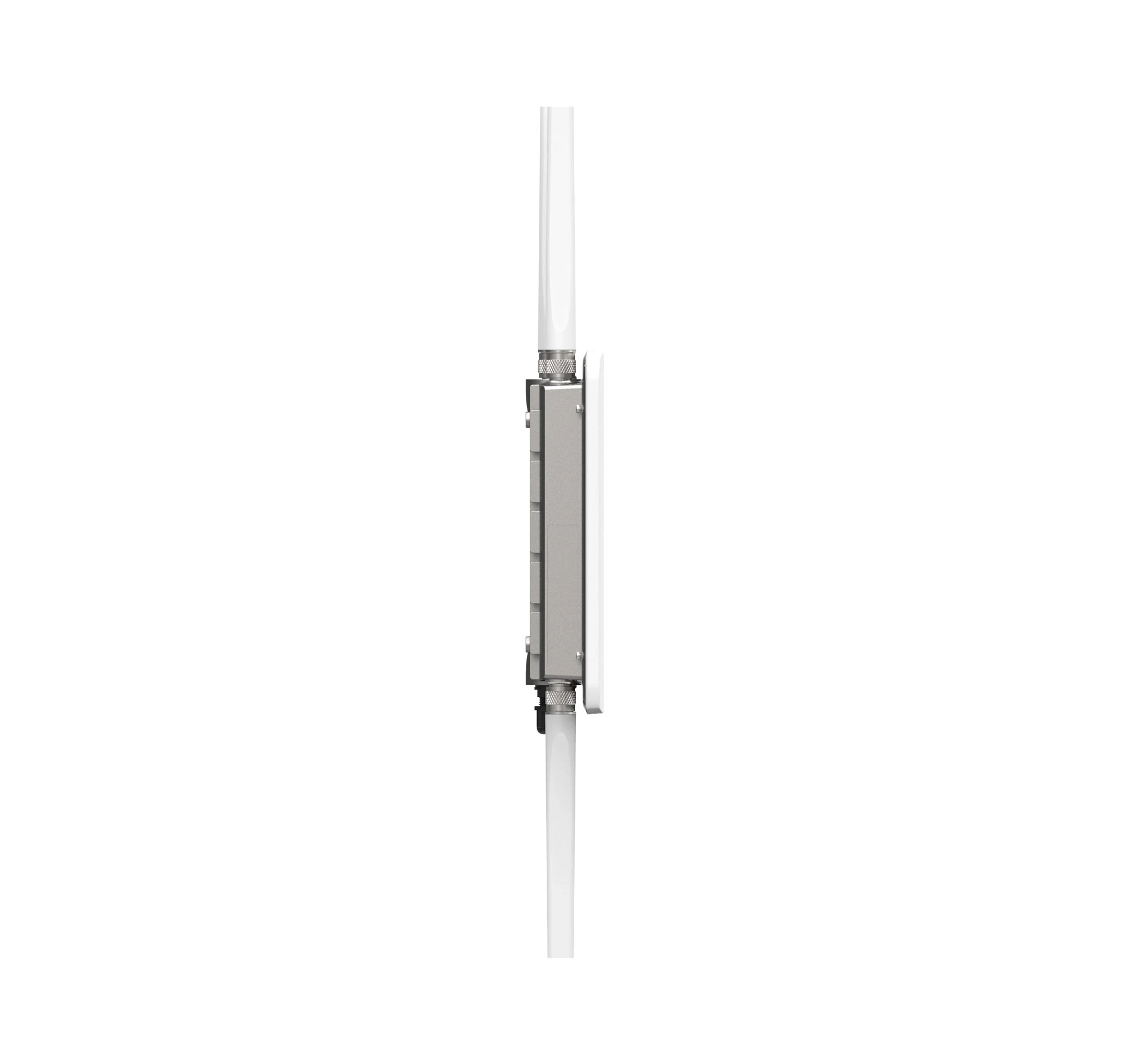

ECW270 Cloud Managed Wi-Fi 6 4 x 4 Outdoor Access Point.
Dual-Band 11ax reaches speeds of 2,400 Mbps on 5 GHz and 1,200 Mbps on 2.4 GHz band
SKU: ECW270
MPN: 1104A0249301
Lagerstatus: På väg in
Beskrivning
Product Highlight
ECW270 Wi-Fi 6, 4x4, IP68, MU-MIMO Cloud Managed Dual-Band Outdoor Wireless Access Point reaches speeds of 2,400 Mbps on 5 GHz and 1,200 Mbps on 2.4 GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.
- Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices
- Supports up to 2,400 Mbps in 5 GHz band & 1,200 Mbps in 2.4 GHz band
- IP68-Rated weatherproof & dustproof housing withstands harsh environments
- 1 x 2.5 Giga PoE++ compatible port realizes greater throughput and supports Power over Ethernet (802.3 at/bt) for flexible installation over 100 meters (328 feet)
- 1 x Gigabit Port
- Four detachable 5 dbi high-gain 2.4GHz antennas
- Four detachable 7 dbi high-gain 5GHz antennas
- Quick-scan device register & configuration and remote monitoring & troubleshooting
- Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App
- Mesh Wireless Support simplifies setup, optimizes signals & self-heals
Work Smart with EnGenius Cloud
Teknisk specifikation
| Technical Specifications | |
|---|---|
| Standards | |
| IEEE 802.11ax on 2.4 GHz | |
| IEEE 802.11ax on 5 GHz | |
| Backward compatible with 802.11a/b/g/n/ac | |
| Antenna | |
| 4 x 2.4 GHz: 5 dBi (External Omni-Directional) | |
| 4 x 5 GHz: 7 dBi (External Omni-Directional) | |
| Physical Interface | |
| 1 x 10/100/1000 Ethernet Port | |
| 1 x 10/100/1000/2500 Ethernet Port (PoE++) | |
| LED Indicators | |
| 1 x Power | |
| 1 x LAN1 | |
| 1 x LAN2 | |
| 1 x 2.4 GHz | |
| 1 x 5 GHz | |
| Power Source | |
| Power-over-Ethernet: 802.3 at/bt Input | |
| IEEE 802.11e Compliant Source | |
| Active Ethernet (PoE) | |
| Maximum Power Consumptio | |
| 46W | |
| Wireless & Radio Specifications | |
| Operating Frequency | |
| Dual-Radio Concurrent 2.4 GHz & 5 GHz | |
| Operation Modes | |
| Managed mode: AP, AP Mesh, Mesh | |
| Frequency Radio | |
| 2.4 GHz: 2400 MHz ~ 2483 MHz | |
| 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5875 MHz | |
| Transmit Power | |
| Up to 24 dBm on 2.4 GHz | |
| Up to 24 dBm on 5 GHz | |
| (Maximum power is limited by regulatory domain) | |
| Radio Chains/Spatial Stream | |
| 4 × 4:4 | |
| SU-MIMO | |
| Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio. | |
| Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio. | |
| MU-MIMO | |
| Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. | |
| Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. | |
| Supported Data Rates (Mbps) | |
| 802.11ax | |
| 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4) | |
| 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4) | |
| 802.11b: 1, 2, 5.5, 11 | |
| 802.11a/g: 6, 9, 12, 18, 36, 48, 54 | |
| 802.11n: 6.5 to 600 (MCS0 to MCS31) | |
| 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4) | |
| Supported Radio Technologies | |
| 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) | |
| 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) | |
| 802.11b: Direct-sequence spread-spectrum (DSSS) | |
| Channelization | |
| 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz | |
| 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz | |
| 802.11n supports high throughput (HT) —HT 20/40 MHz | |
| 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) | |
| 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU | |
| Supported Modulation | |
| 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | |
| 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM | |
| 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM | |
| 802.11b: BPSK, QPSK, CCK | |
| Max Concurrent User | |
| 511 Per radio | |
| Management Features | |
| Multiple BSSID: | |
| 8 SSIDs for both 2.4 GHz and 5 GHz radios | |
| VLAN Tagging | |
| Supports 802.1q SSID-to-VLAN Tagging | |
| Cross-Band VLAN Pass-Through | |
| Management VLAN | |
| Spanning Tree | |
| Supports 802.1d Spanning Tree Protocol | |
| QoS (Quality of Service) | |
| Complaint With IEEE 802.11e Standard | |
| WMM | |
| SNMP | |
| v1, v2c, v3 | |
| MIB | |
| I/II, Private MIB | |
| Fast Roaming | |
| 802.11r/k | |
| Wireless Security | |
| WPA2-PSK | |
| WPA2-Enterprise | |
| WPA3-PSK | |
| WPA3-Enterprise | |
| Hide SSID in Beacons | |
| MAC Address Filtering, Up to 32 MACs per SSID | |
| Wireless STA (Client) Connected List | |
| Https | |
| SSH Tunnel | |
| Client Isolation | |
| Environmental & Physical | |
| Temperature Range: | |
| Operating: – -4 º~149 ºF/-20 ºC~65 ºC | |
| Storage: -40Fº~176ºF/-40ºC~80ºC | |
| Humidity (non-condensing) | |
| Operating: 90% or less | |
| Storage: 90% or less | |
| IP Rating | |
| IP68 | |
| Surge Protection | |
| 1KV | |
| ESD Protection | |
| Contact: 4KV | |
| Air: 8 KV | |
| Dimensions & Weight | |
| Device ECW270 | |
| Weight: 1870g | |
| Width: 218 mm | |
| Length: 285 mm | |
| Height: 53 mm | |
| Package Contents | |
| 1 – ECW270 Cloud Managed Outdoor Access Point | |
| 2 – Mounting Brackets | |
| 1 – Wall-Mount Screw Set | |
| 4 – 2.4GHz 5dBi Detachable Antennas | |
| 4 – 5GHz 5dBi Detachable Antennas | |
| 1 – Quick Installation Guide | |
| Certifications | FCC, CE, IC |
