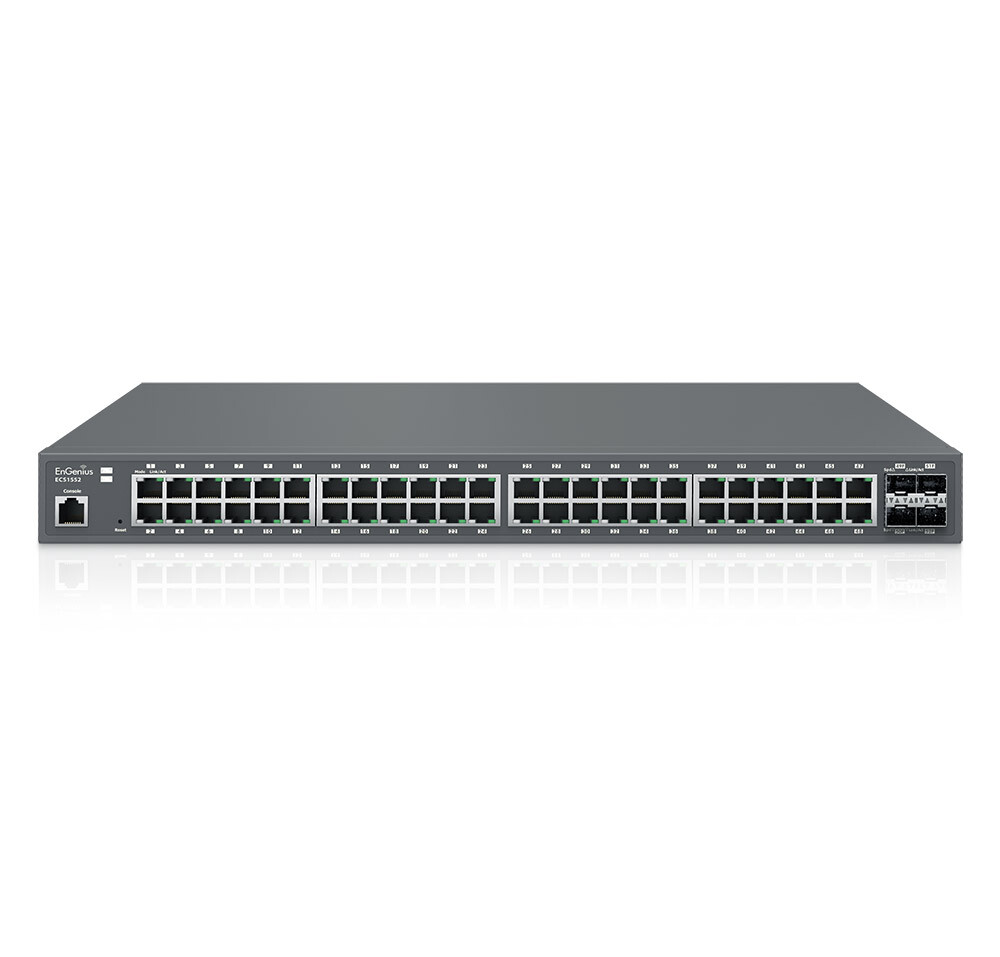

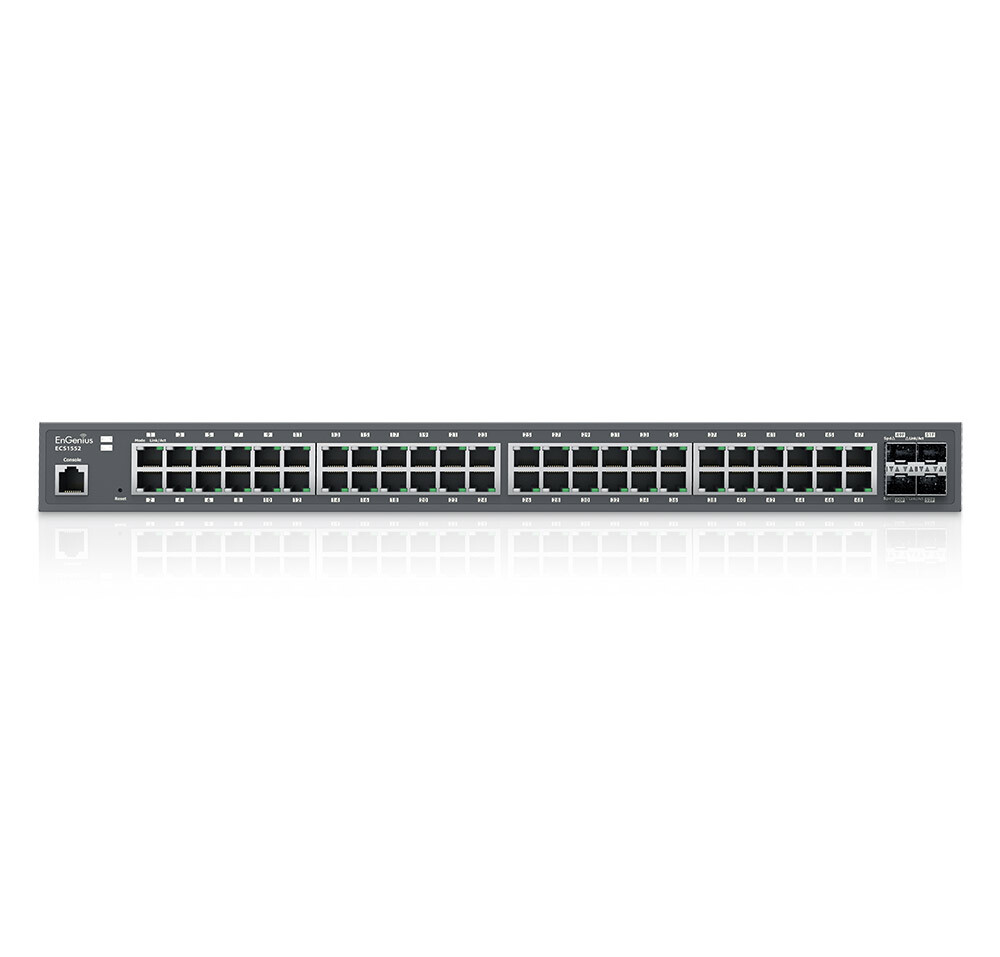

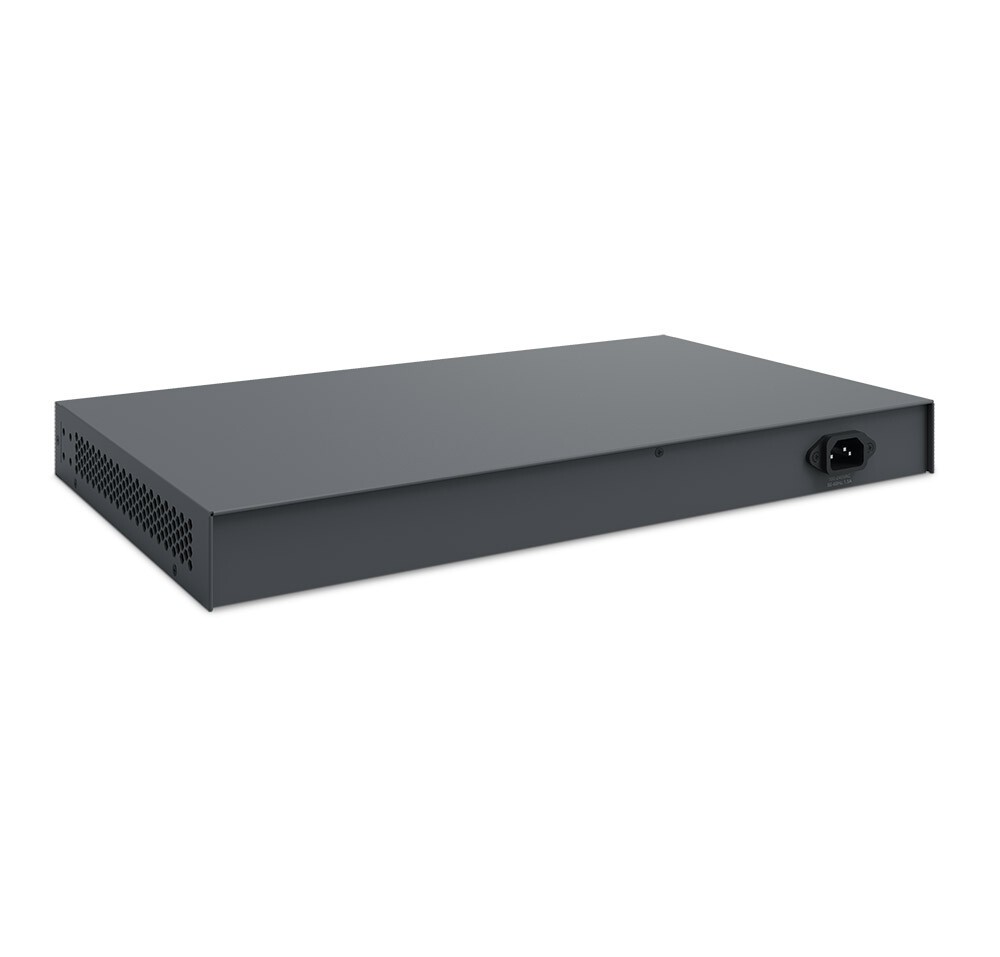

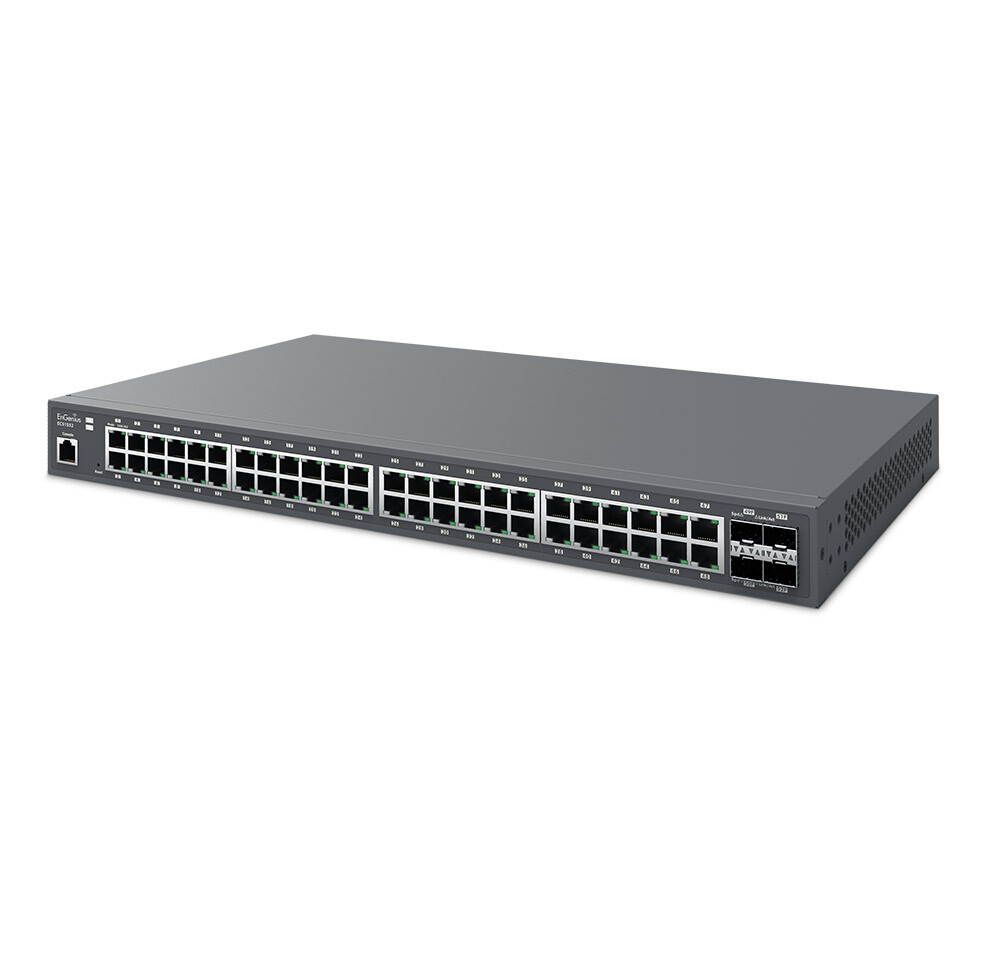

ECS1552 Cloud Managed 48-Port Gigabit Switch with 4 SFP+ Ports
Layer 2+ Switch with Multiple Management Options for Large Businesses. 48 x 10/100/1000 Base-T GbE Ports
SKU: ECS1552
MPN: 1402A0109304
Lagerstatus: 5-10 dagar
Beskrivning
Product Highlights
EnGenius Cloud ECS1552 is a 48-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.
- 48 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 176 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
Work Smart with EnGenius Cloud
Teknisk specifikation
| Technical Specifications | |
|---|---|
| Port Standards | 802.3 10Base-T Ethernet |
| 802.3u 100Base-TX Ethernet | |
| 802.3ab 1000Base-T Ethernet | |
| 802.3x Full-Duplex Flow Control | |
| Network Ports | 48 10/100/1000 Mbps Ports + 4x SFP+ Ports |
| Switching Capacity | 176Gbps |
| SDRAM | 512MB |
| Flash Memory | 128MB |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| Physical Interface LED Indicators | |
| Power LED | |
| Fault LED | |
| Ports | Link/Activity/Speed (per Ethernet port) |
| Software Features (L3 Features) | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Software Features (L2 Features) | |
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Software Features(L2 Feature) | |
| MAC Address Table | 32K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported | Queue 8 |
| Trust Mode | Cos/802.1p |
| DSCP | |
| CoS/802.1p-DSCP | |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL |
| IPv4/IPv6 Based ACL | |
| ACL Binding | |
| Time Based ACL | |
| Web Graphical User Interface (GUI) | HTTP IPv4 / IPv6 |
| HTTPS IPv4 / IPv6 | |
| SSL Certificate | Certificate/Key Import |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree |
| Loopback Detection | |
| Multicast Filtering | |
| IGMP Multicast Forwarding | |
| IGMP Snooping | |
| MLD Multicast Forwarding | |
| 802.1Q VLAN tagging | |
| 802.3x flow control | |
| 802.3ad Link Aggregation | |
| IPv4 DHCP Relay | |
| IPv4 DHCP Snooping | |
| IPv4 DHCP Snooping Source MAC Address Check-up | |
| ARP Inspection | |
| ARP Packet Validation (additional validation checks) | |
| Voice VLAN | |
| Port-based VLAN | |
| Protocol-Based VLAN | |
| CoS Mapping | |
| 802. 1X Radius Authentication Protocol | |
| IPv4 Settings | |
| IPv6 Settings | |
| IEEE 802. 3az Energy Efficient Ethernet (EEE) | |
| Command Line Interface (CLI) | |
| SSH Server | |
| Telnet Server | |
| TFTP Client | |
| Configuration Upgrade/Backup | |
| Simple Network Time Protocol (SNTP) | |
| SYSLOG | |
| 802.1d Spanning tree | |
| Environmental & Physical | |
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | Operating: 5% - 95% |
| Package Contents | 1x Cloud Managed Gigabit Switch |
| 1x Quick Installation Guide | |
| 1x Power Cord | |
| 1x RJ45 Console Cable | |
| 1x Rack Mount Kit | |
| Device Dimensions & Weights | |
| Device | ECS1552 |
| Weight | 8.17 lbs. (3.71kg) |
| Width | 17.32 lbs. (440 mm) |
| Length | 10.23 lbs. (260 mm) |
| Height | 1.73 lbs. (44 mm) |
| Packaging | |
| Weight | 9.34” (4.24 kg) |
| Width | 13.74” (349 mm) |
| Length | 21.06” (535 mm) |
| Height | 4.09” (104 mm) |
| Warranty | 2 year |
| Certifications | CE, FCC, IC |
